Fluorosilicone rubber for transformers IOTA FHTV 3171 series

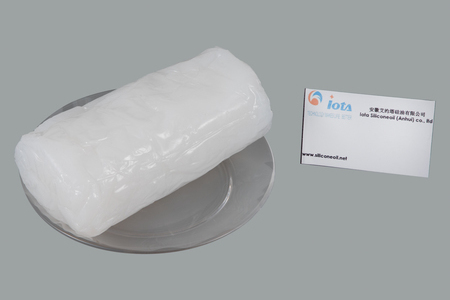

IOTA FHTV 3502 Adhesive Purpose Series Fluorosilicone Rubber
Special fluorosilicone rubber for turbocharger tube IOTA FHTV 4162 series
IOTA FHTV 3800P Series Platinum-Cured High-Temperature Fluorosilicone Rubber
Fluoro silicone gum IOTA 3110-F series
Description：
Apply to automotive turbocharger tubes or other compound rubber tubes.It can bond and co-cure with silicone rubber.Excellent calenderability, and oil, solvent resistance.
Product performance：
|
Appearance |
Properties |
Test method |
FHTV |
FHTV |
FHTV |
FHTV |
|
Pale yellow |
Specific Gravity/g/cm³ |
ASTM D792 |
1.4 |
1.41 |
1.42 |
1.44 |
|
Hardness/ |
ASTM D2240 |
41 |
50 |
60 |
61 |
|
|
Tensile Strength /MPa |
ASTM D412 |
9.5 |
9.8 |
10.2 |
9.8 |
|
|
Elongation At Break /% |
ASTM D412 |
370 |
282 |
263 |
310 |
|
|
Tear Strength/KN/m |
ASTM D624-B |
17 |
17 |
18 |
17 |
|
|
*Heat Resistance (225℃×72h) |
Hardness change/shore A |
4 |
2 |
2 |
2 |
|
|
Tensile strength change, % |
-24 |
-25 |
-23 |
-26 |
||
|
Elongation at break change,% |
-19 |
-10 |
-14 |
-12 |
||
|
Fuel C Volume Change/% (23℃/72h) |
ASTM D471 |
23 |
23 |
21 |
21 |
|
|
Peel Strength/N/mm, with Methyl vinyl silicone rubber |
2 |
2 |
2.2 |
2 |
||
|
Curing Condition |
1 DCBP, Press cure:100℃×10min,Post cure:200℃×4h |
|||||
*The values only represent the typical features of the product and are not intended for use in specifications.
*Heat resistance additives need to be added to meet the requirements of heat resistance.
Processing advice:
It is recommended to use 0.8 – 1 phr. peroxide (2,4-dichlorobenzoyl)Vulcanizing agent (DCBP)The customer shall decide the optimum curing temperature and time according to the product dimensions and curing methods.
Package:
20kg boxes.
Storage:
This product has cold-flow characteristics, should avoid bag breakage in the process of transportation and usage.Must be stored in a cool dry environment, and shelf life is 1 year.
