IOTA FLSR3040 Fluorosilicone potting adhesive
High Tear Strength Series Fluorosilicone Rubber IOTA FHTV 3200 series
High resilience fluorosilicone rubber IOTA FHTV 3270 series
Special fluorosilicone rubber for turbocharger tube IOTA FHTV 4361 series

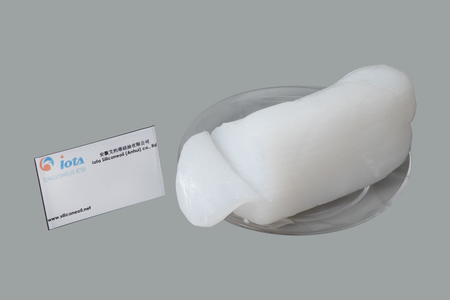

IOTA FHTV 3800P Series Platinum-Cured High-Temperature Fluorosilicone Rubber
Description：
This product is a high-temperature cured fluorosilicone elastomer and suitable for platinum curing systems.Excellent calenderability, and oil, solvent resistance.It has extremely low compression set and excellent high/low temperature resistance and resilience.
Product performance：
|
Appearance |
Properties |
Test method |
FHTV |
FHTV |
FHTV |
FHTV |
|
Milk white, translucent |
Specific Gravity/g/cm³ |
ASTM D792 |
1.4 |
1.41 |
1.42 |
1.45 |
|
Hardness/shoreA |
ASTM D2240 |
41 |
51 |
62 |
72 |
|
|
Tensile Strength /MPa |
ASTM D412 |
10.5 |
10 |
9.8 |
9.5 |
|
|
Elongation At Break /% |
ASTM D412 |
430 |
370 |
350 |
320 |
|
|
Tear Strength/KN/m |
ASTM D624-B |
25 |
25 |
27 |
24 |
|
|
Compression Set /% (177℃*22h) |
ASTM D395 |
8 |
6.5 |
6 |
10 |
|
|
Resilience/% |
ASTM D1054 |
45 |
45 |
42 |
40 |
|
|
*Heat Resistance (225℃×72h) |
Hardness change/shore A |
2 |
1 |
2 |
2 |
|
|
Tensile strength change, % |
-13 |
-11 |
-11 |
-10 |
||
|
Elongation at break change,% |
-18 |
-17 |
-15 |
-15 |
||
|
Fuel C Volume Change /% (23℃/72h) |
ASTM D471 |
23 |
22 |
22 |
21 |
|
|
Curing Condition |
Press cure:140℃×15min,Post cure:200℃×4h |
|||||
*The values only represent the typical features of the product and are not intended for use in specifications.
*Heat resistance additives need to be added to meet the requirements of heat resistance.
Processing advice:
Recommended usage: 0.3–0.4phr. Platinum catalyst (Karstedt). After adding platinum catalyst, store at low temperature with a shelf life of 7 days.The customer shall decide the optimum curing temperature and time according to the product dimensions and curing methods.
Package:
20kg boxes.
Storage:
This product has cold-flow characteristics, should avoid bag breakage in the process of transportation and usage.Must be stored in a cool dry environment, and shelf life is 1 year.
